PRODUCT OVERVIEW
-

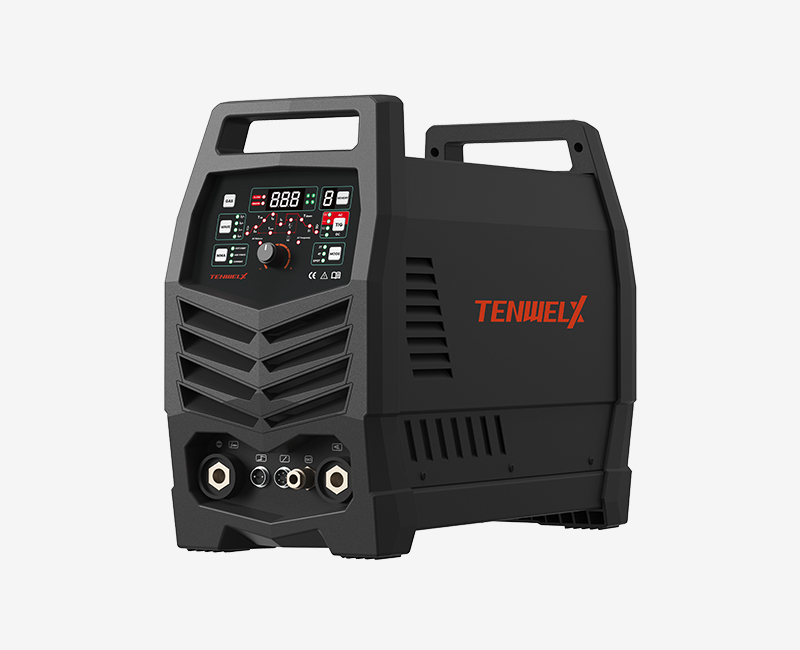

Wide materials compatibility: The TENWELX TIG ACDC welder welds aluminum and aluminum alloys, stainless steel, copper, carbon steel, alloy steel, cast iron, and more. It also offers precise welding of thinner materials.
Memory function: Stores up to 10 sets of welding parameters for quick recall. (10 for TIG, 10 for MMA)
Reliable machine: Used IGBT inverter and MCU software control. Easy to start the arc, has a stable welding current, low spatter, low noise, and a smooth welding appearance. Optimized design ensures effective heat dissipation, moisture resistance, and protection against conductive dust.
Four waveform selections: The V series offers square, sine, triangular, and trapezoidal waves, which enhance control, penetration, and weld quality.
MMA mode: The V series offers the VRD function, which can be selected as an optional function when choosing machines. Additional features include anti-stick, hot start, and arc force control.
The TENWELX TIG ACDC PULSE welder is also equipped with a select and reliable set of accessories to enhance the welder’s experience.
Read More
-
APPLICATIONS
-
Workshop
Light Fabrication
Metallic Structures
Motorsports
Education
Home
-
PROCESSES
-
Mix TIG
AC TIG
AC Pulse TIG
DC TIG
DC PULSE TIG
SPOT Welding
MMA
-
SPECIFICATIONS
-
TIG 180 ACDC TIG 200 ACDC TIG 225 ACDC Rated Input Voltage (V) AC 110/220V/1Ph ± 10% Rated Input Current (A) 20 22 25 TIG Current Adjustment (A) 10 ~ 180 10 ~ 200 10 ~ 225 MMA Current Adjustment (A) 20 ~ 160 20~180 20~200 No-load Voltage (V) 70 70 70 Rated Output (25℃) 40%@180A/17.2V
100%@125A/15V
40%@200A/18V
100%@140A/15.6V
40%@225A/19V
100%@155A/16.2V
Pulse Frequncy (Hz) 0.5 ~ 999 0.5 ~ 999 0.5 ~ 999 Pulse Duty Cycle (%) 10 ~ 90 10 ~ 90 10 ~ 90 AC Frequency (Hz) 1 ~ 250 1 ~ 250 1 ~ 250 AC Balance (%) 15 ~ 50 15 ~ 50 15 ~ 50 Efficiency (%) 80 80 80 Power Factor 0.93 0.93 0.93 Insulation Class F F F Protection Class IP23 IP23 P23 Dimension (mm) 545*210*380 545*210*380 545*210*380 Weight (Kg) 15 15 15
-
WARRANTY & SERVICE
-
Read More
3-Year Limited Warranty, 1-Year Free Service, 90-Day Satisfaction Guaranteed
We’re confident of the quality of our products, and we’ll repair, without charge, any defects due to faulty materials or workmanship within the specified warranty.
