PRODUCT OVERVIEW
-

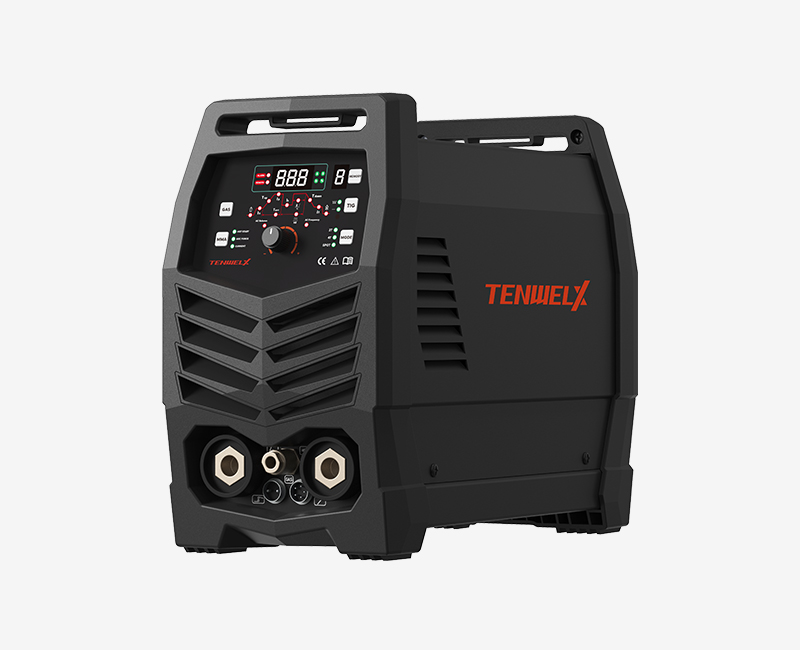

TENWELX TIG DC PULSE welder can weld various metals, including stainless steel, copper, carbon steel, alloy steel, cast iron, and more, and it can also precisely weld thinner materials.

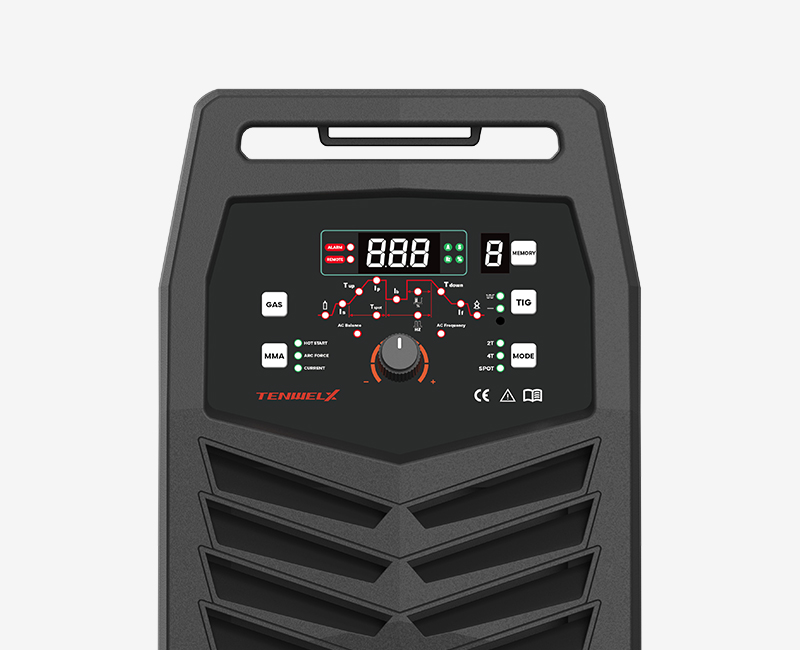

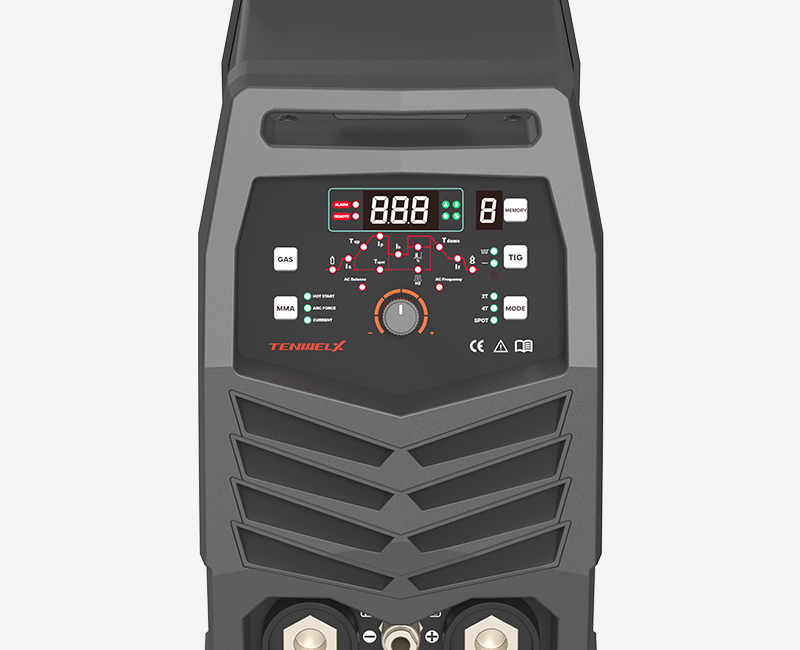

An integrated LED display makes it easier for users to adjust welding parameters to the ideal settings. Intuitive visuals provide precise, constant control.
Memory function stores up to 10 sets of welding parameters for quick recall.
Easy to start the arc, stable welding current.
Low spatter, low noise, and smooth welding appearance.
In MMA mode, features include anti-stick, hot start, and arc force control.
Use IGBT inverter technology and MCU software control.

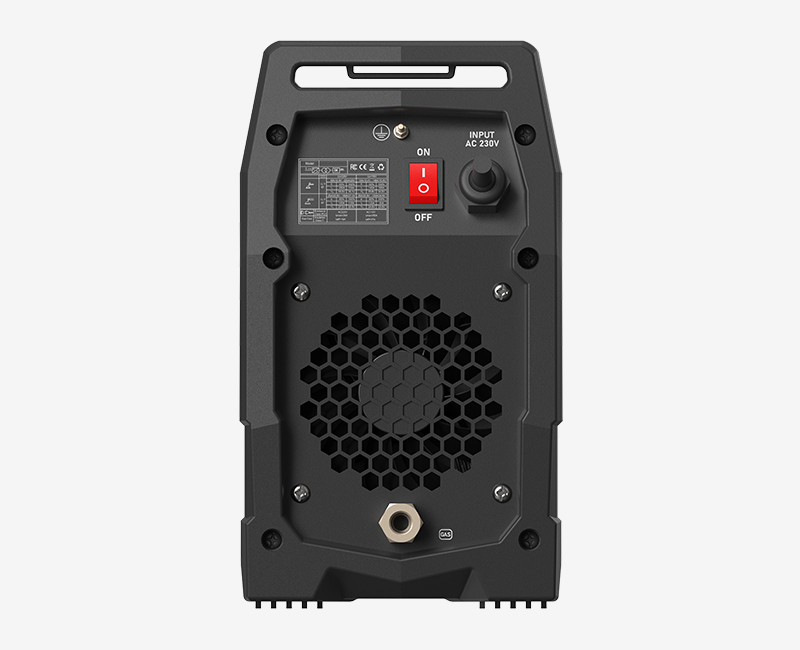

Optimized airflow design ensures effective heat dissipation, moisture resistance, and protection against conductive dust.
The TENWELX TIG DC PULSE welder is also equipped with a select and reliable set of accessories to enhance the welder’s experience.
Read More
-
APPLICATIONS
-
Workshop
Light Fabrication
Metallic Structures
Motorsports
Education
Home
-
PROCESSES
-
DC TIG
DC PULSE TIG
SPOT Welding
MMA
-
SPECIFICATIONS
-
TIG 180 DP TIG 200 DP TIG 225 DP Rated Input Voltage (V) AC 110/220V/1Ph ± 10% Rated Input Current (A) 20 22 25 TIG Current Adjustment (A) 10 ~ 180 10~200 10~225 MMA Current Adjustment (A) 20 ~ 160 20~180 20~200 No-load Voltage (V) 70 70 70 TIG Max. Duty Cycle (25℃) 40%@180A/17.2V
100%@125A/15V
40%@200A/18V
100%@140A/15.6V
40%@225A/19V
100%@155A/16.2V
Pulse Frequncy (Hz) 0.5 ~ 999 0.5 ~ 999 0.5 ~ 999 Pulse Duty Cycle (%) 10 ~ 90 10 ~ 90 10 ~ 90 Efficiency (%) 80 80 80 Power Factor 0.93 0.93 0.93 Insulation Class F F F Protection Class IP23 IP23 P23 Dimension (mm) 410*165*325 410*165*325 410*165*325 Weight (Kg) 8 9 10
-
WARRANTY & SERVICE
-
Read More
3-Year Limited Warranty, 1-Year Free Service, 90-Day Satisfaction Guaranteed
We’re confident of the quality of our products, and we’ll repair, without charge, any defects due to faulty materials or workmanship within the specified warranty.
